Features
-
25kW, 96 n.m. Radar Antenna for NavNet series with choice of stylish 4' or 6' Open Array
-
Ultra High Definition (UHD™) Digital Radar offers crystal clear, noise-free target presentation with automatic real-time digital signal processing
-
Real-time digital auto Gain/Sea/Rain controls to deliver noise-free radar presentation
-
Radar antenna rotation speed (24/36/48 rpm) is automatically shifted to the appropriate pulse length
-
Simultaneous scanning technology drives our powerful dual-range radar, providing unsurpassed target detection.
With each sweep of antenna, dual progressive scan transmissions are sent, received and processed to display two separate radar ranges on your NavNet TZtouch / 3D display simultaneously. Each radar presentation acts autonomously, allowing for manipulation of individual gain and clutter controls -
Radome incorporates a Network port to which certain Furuno network sensors; including the SC-30 Satellite Compass, and GP-330B GPS receiver, can be directly connected.
Power for these networked sensors is supplied directly from the radome itself, allowing for flexible installation of multiple sensors without the need to run cables all the way to the main processor unit -
PSU-013 Power Supply Unit included as standard supply
Specifications
ANTENNA
- Peak Output Power
- 25 kW
- -
- Type
- 1255 mm Open (4')/1795 mm Open (6')
- Frequency
- 9410 ± 30 MHz
- Beam Width (Horizontal)
- 1.9°/1.4°
- Beam Width (Vertical)
- 22°/22°
- Range Scales
- 0.0625 to 96 nm
- Antenna Rotation Speed
- 24/36/48 rpm
- Weight
- 4' Open Radar Sensor DRS12A/25A 26 kg 57.3 lb
6' Open Radar Sensor DRS25A/12A/25A 28 kg 61.7 lb
ENVIRONMENT
- Temperature
- Temperature: -30°C to + 55°C
- Waterproofing
- IP26
POWER SUPPLY
- Power Supply / Consumption Current
- PSU-013

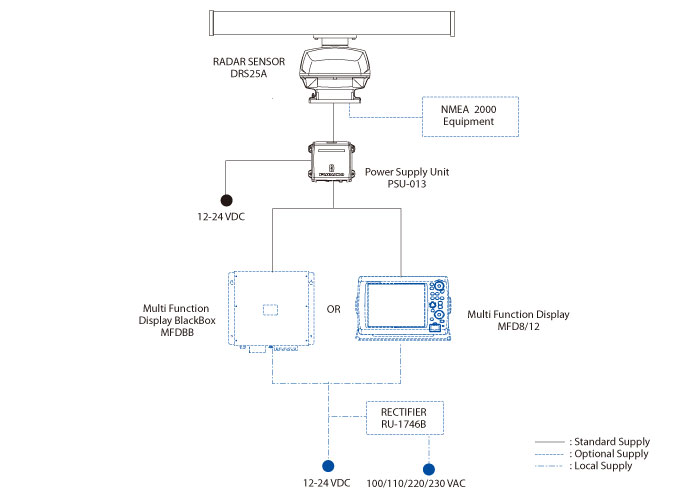

Equipment List
Standard
- RADAR SENSOR UNIT
RSB-118-095-E1 UNIT - STANDARD SPARE PARTS, INSTALLATION MATERIALS,
ACCESSORIES AND MANUALS1 SET - ANTENNA RADIATOR
XN-12A OR XN-13A1 UNIT - RADAR SENSOR CABLE ASSY
10/15/20/30 M1 SET - POWER SUPPLY UNIT
PSU-03
INCLUDING NETWORK CABLE ASSY (5 M), POWER CABLE ASSY (5 M)1 UNIT
Option
- NMEA2000 HEAVY CABLE ASSY1 M
2 M
6 M - NMEA2000 LIGHT CABLE ASSY1 M
2 M
6 M - RADAR SENSOR CABLE ASSY10 M
15 M
20 M
30 M - RECTIFIER (CHINA)PR-62 (110/220 VAC)
RI-1746B2 (220 VAC)
RU-3423 (110/220 VAC) - JOINT BOX
