GP-320B

GPS/WAAS RECEIVER ANTENNA



A high performance GPS Receiver designed for any type of vessel.

GP-320B makes any NavNet product capable of receiving SBAS (WAAS/EGNOS/MSAS) and GPS information. Now there is no need to have a separate unit to get your SBAS/GPS fix. This antenna has everything you need built-in, and it delivers accuracy better than 3 meters by decoding GPS correction signals from the WAAS.

Recreational Boats
NavNet Connect

Features

  • WAAS (Wide Area Augmentation System) Receiver

  • 12 Channel, All-in-View Parallel Tracking GPS Receiver

  • Up to 900 Knot Tracking Velocity

  • 90 Second Cold Start Acquisition, 20 Second Warm State Acquisition

  • 3M Accuracy or higher (95% of the time, SA off)

  • WAAS On/Off Selectable

Specifications

GPS / SBAS (WAAS/EGNOS/MSAS)

Receiving Type
Twelve discrete channels,
C/A code, all-in-view, SBAS (WAAS/EGNOS/MSAS)
Receiving Frequency
L1（1575.42 MHz）
Accuracy
GPS: 10 m, MSAS: 7 m, WAAS: 3 m

PLOTTER

Chart
WGS-84, NAD-27 and others

OTHERS

Waterproofing
IEC60529 IPX6
Power Supply
DC 12-24 V、0.11-0.06 A
Weight
0.8　kg

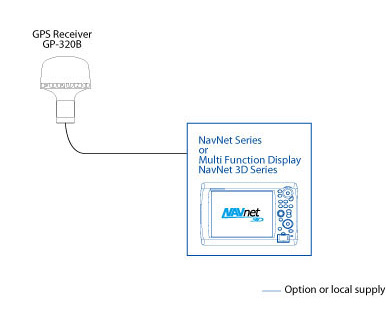

Interconnection Diagram

Equipment List

Standard

  • GPS RECEIVER ANTENNA UNITWITH 10M CABLE

Option

  • MAST MOUNTING KIT
  • EXTENSION CABLE ASSY10M (NMEA0183)
  • L-ANGLE MOUNTING BASE
  • RIGHT ANGLE MOUNTING BASE
  • HANDRAIL MOUNTING BASE
