FSV-35

FULL-CIRCLE COLOR SCANNING SONAR




Advanced Solutions Built on World-Proven Sonar Technology

The FSV series of Furuno Scanning Sonar has long been a favorite among commercial fishermen, and the FSV-35 carries on that tradition. The FSV series provides reliable and consistent detection of fish and seabed conditions with revolutionary, enhanced signal processing technology.

Fishing Vessels
Black Box VIDEO OUT

Features

  • Sphere transducer provides 90 degrees vertical detection

  • Menu-driven operation

  • Vivid 32-color echo strength dependent display for improved recognition of bottom, fish school concentration, distribution and volume

  • Dual Display mode

  • Schools of fish can be searched from horizontal (range direction), vertical (depth direction) with vertical features

  • Pitching and rolling compensation for stable picture always

  • User programs for one-touch setup of equipment

  • Function keys for direct access to desired menu item

  • Fish histogram shows signal strength distribution of echo within estimate mark

  • Fish estimate feature to compare the volume of two schools of fish

    • timate feature to compare the volume of two schools of fish

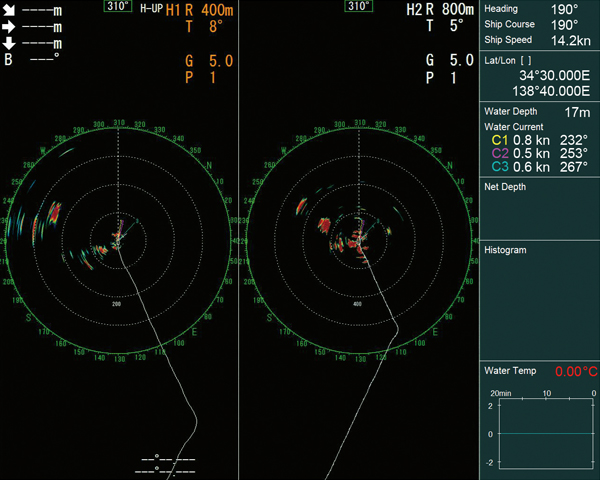

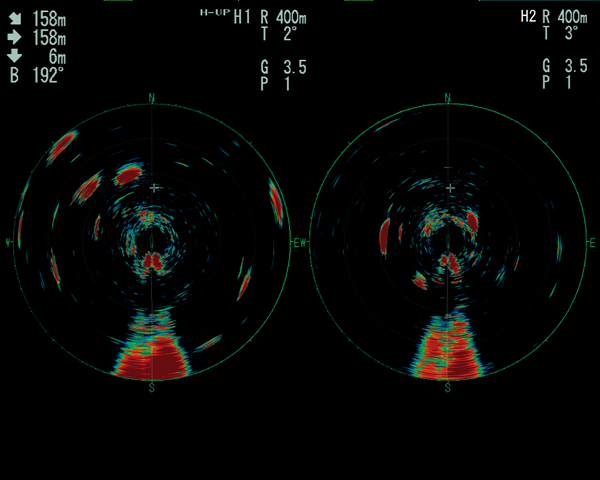

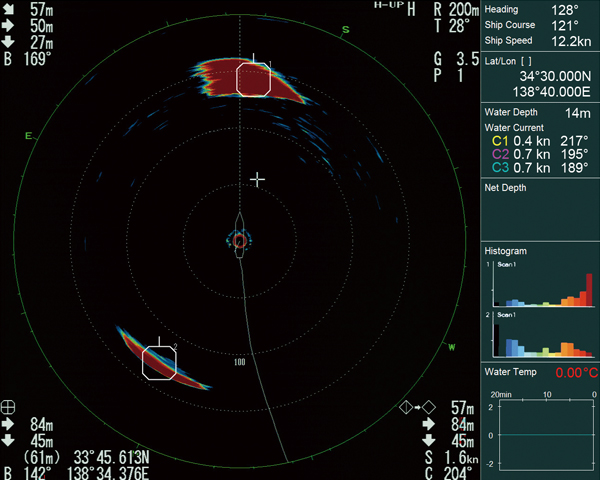

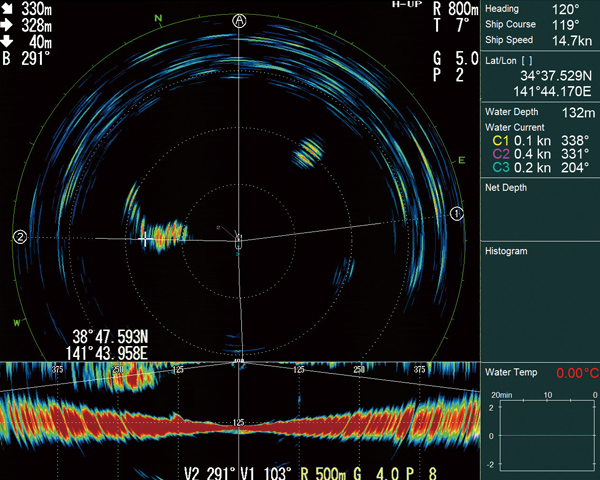

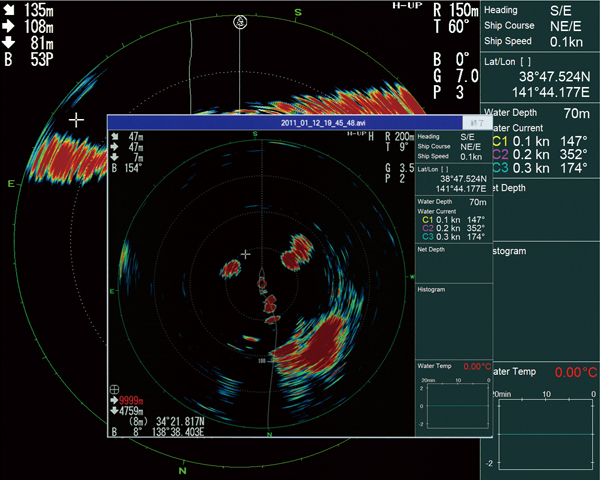

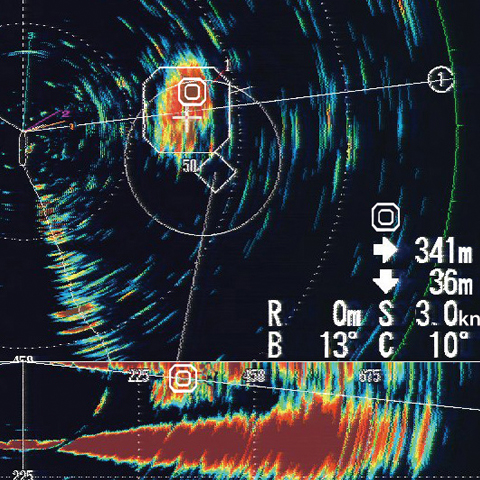

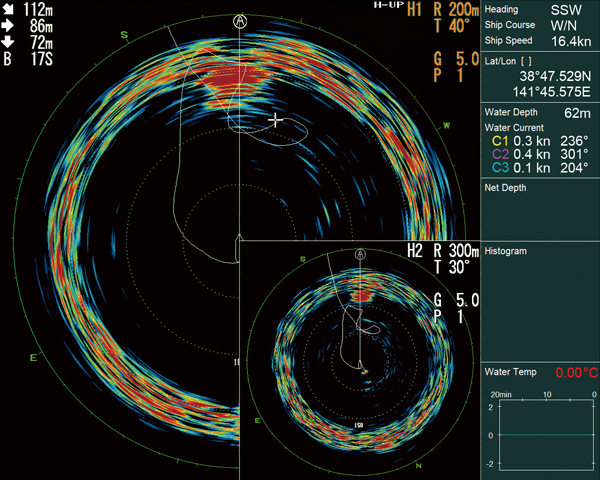

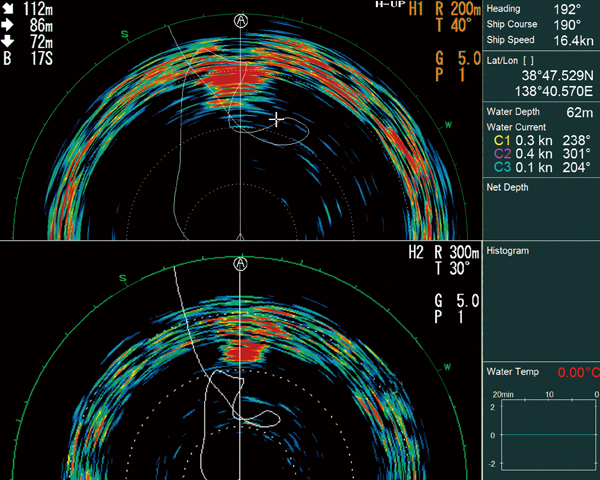

    Screenshots

Specifications

General

Basic Range
60-5000 m

Power Supply

Processor Unit
12-24 VDC: 8.7 – 4.4 A (I/F unit included)
Interface unit: 48 VDC: 2.7 A or less (from Processor unit)
Transceiver Unit
100/110/115/220/230 VAC: 15 A, 1 phase, 50-60Hz
Hull Unit
220 VAC: 12 A, 3 phase, 50-60Hz

Environment

Waterproofing
Control unit: IP22 (panel), IP20 (chassis)
Processor unit: IP20
Interface unit: IP20
Transceiver unit: IPX0
Transducer: IPX8

Others

Weight
Control unit: 3.8 kg
Processor unit: 15 kg
Interface unit: 3.4 kg
Transceiver unit: 95 kg
Hull unit: 370 kg (800 mm), 930 kg (1100 mm) *with tank

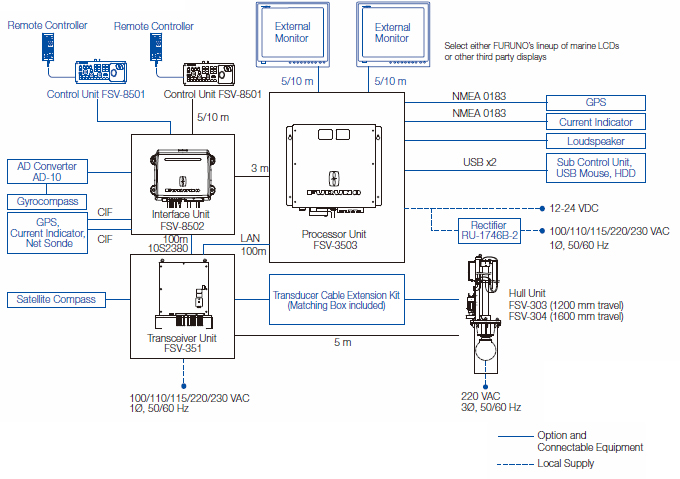

Interconnection Diagram

Equipment List

Standard

  • Control UnitFSV-8501
  • IF UnitFSV-8502
  • Processor UnitFSV-3503
  • TransceiverFSV-351
  • Hull UnitFSV-303/304
  • Installation Materials
  • Spare Parts

Option

  • Control UnitFSV-8501
  • Sub Control UnitFSV-853
  • RectifierRU-1746B-2
  • Remote ControllerFSV-854
  • Junction BoxFI-5002
  • Retraction TankOP10-28/29
  • Attachment KitOP10-24
  • Attachment FlangeOP10-27
  • Fixing MaterialsOP10-9
  • Flushmount KitFP03-09870
  • Extension KitFSV-305-5/15
  • CableVV-SB-CJ0.3SQX5P
  • 8 Core CableVV-S0.3X8C
  • Cable Assy.MJ-ASPF0012-050C/100C
  • Installation Materials
