FSV-25/25S

FULL-CIRCLE COLOR SCANNING SONAR



Stunning performance, amazing range with FSV-25/25S!

With new 3D Sonar Visualizer™ F3D-S (optional application) you can see fish and sonar information in a 3 dimensions, "real world" view.

Fishing VesselsWorkboats
Black Box VIDEO OUT

Features

  • Maximum detection range increased by 30%

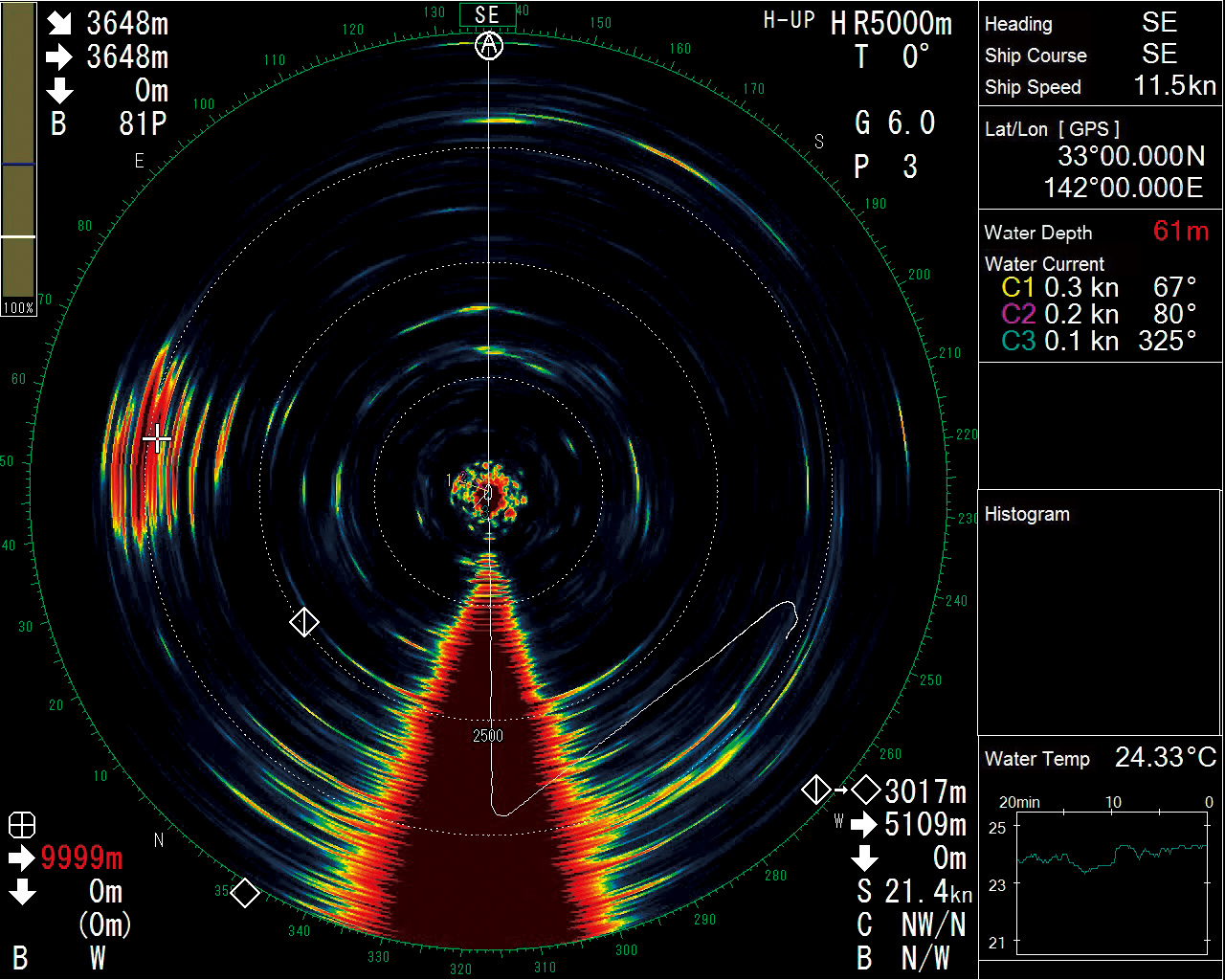

    Thanks to recent advancements in low-frequency transducer elements, signal processing and increased transmission power, detection range has been increased by a full 30%*. You can instantly spot and follow schools of fish from several kilometers away.
    *Compared with FSV-24/35. Performance may vary depending on depth, range and signal frequency used.



  • Improved resolution with new signal compression algorithms

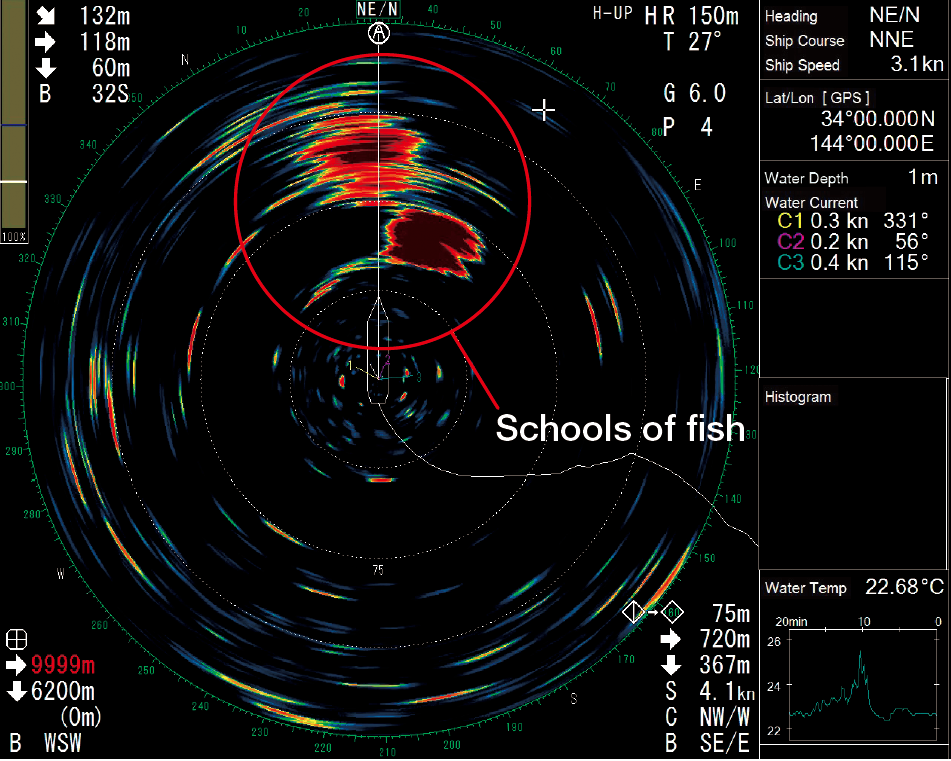

    Left image: (150 m range) Schools of tuna and skipjack tuna spotted.

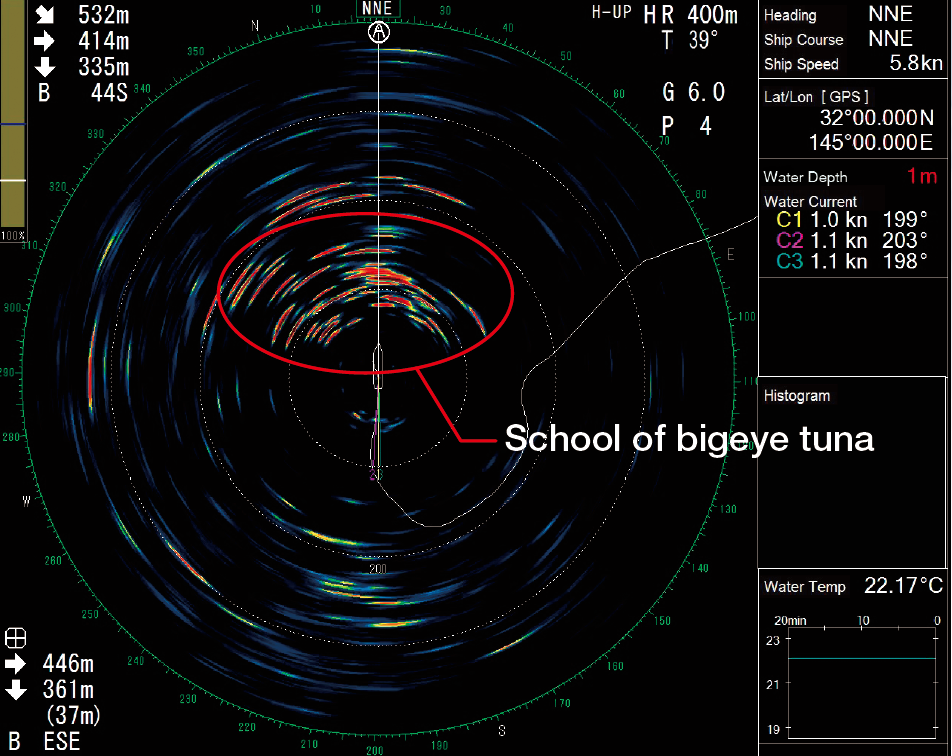

    Right image: (400 m range) Individual bigeye tunas can be seen in this school of fish.

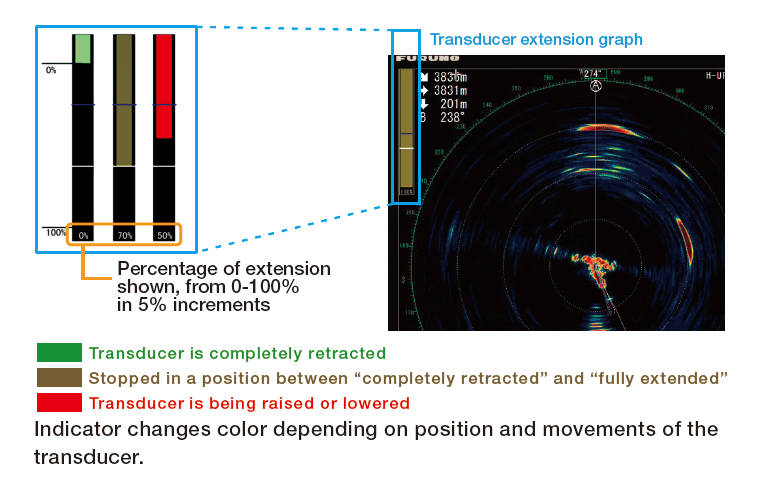

  • Graphical hull-unit indicator

    See exactly how much the transducer is lowered directly on your display with a simple graphical interface. Instantly spot if and how much the transducer is lowered or retracted, helping you avoid accidents and increase the safety at sea.
  • Fully extend the transducer in just 12 seconds for 1200 mm stroke and in 16 seconds for 1600 mm stroke

    A transducer “throw” time of just 12/16 seconds (respectively) places the FSV-25 among one of the fastest hull units available. You can extend and retract the transducer rapidly for smooth operation.
  • Stop function when extending and retracting transducer

    In order to avoid collisions with drift wood and other material, the transducer can be stopped while in motion. The transducer can be lowered to any given length until full extension.
  • Stabilization function for unwavering performance

    The stabilizer ensures that echoes are stable when received, regardless of transducer attitude, counteracting the rolling and pitching motions at sea.
  • Automatically track schools of fish with target lock function

    FSV-25 will automatically lock on schools of fish found and display estimates of distance, depth, speed and angle of movement. Target lock is also available for stationary positions (speed and heading information required).
  • Auto filter for clear and uninterrupted performance

    The auto filter ensures that you get clear and crisp echoes even when travelling at speed. The auto filter is also highly effective against interference from other fishfinder equipped vessels.

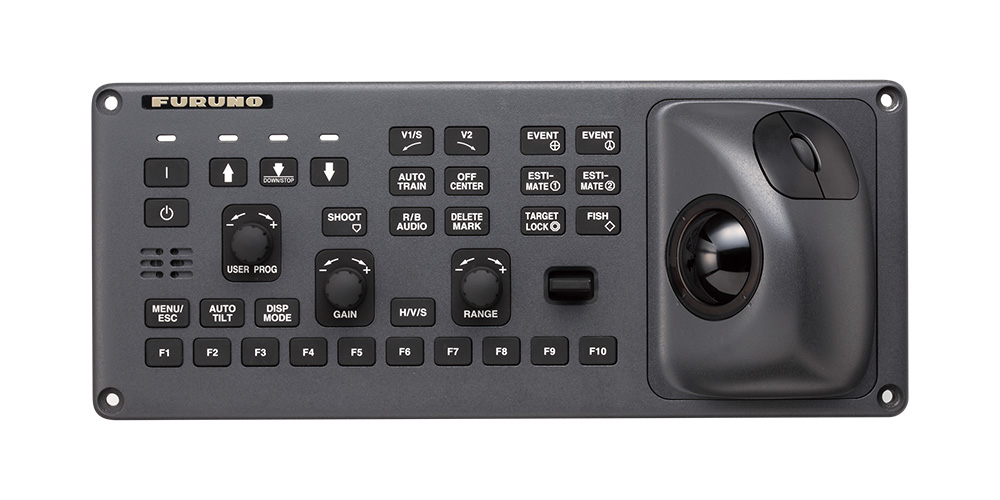

  • Accurate control with large physical control unit

  • Wired Remote and Sub Control Unit available

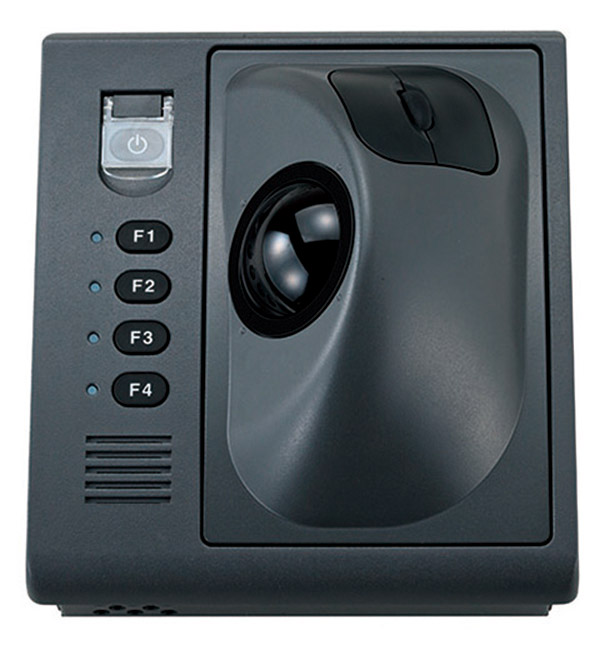

    Sub Control Unit

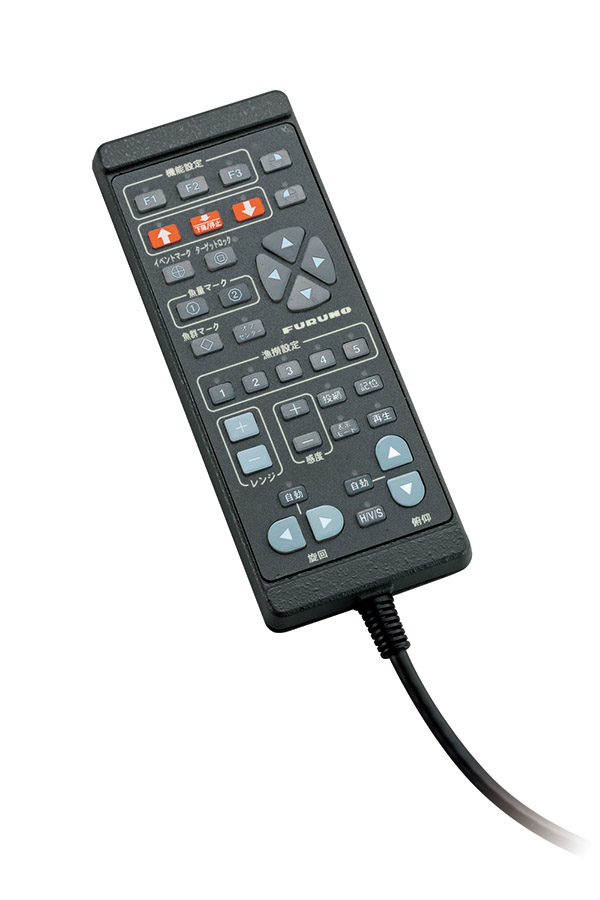

    Remote Controller (wired)

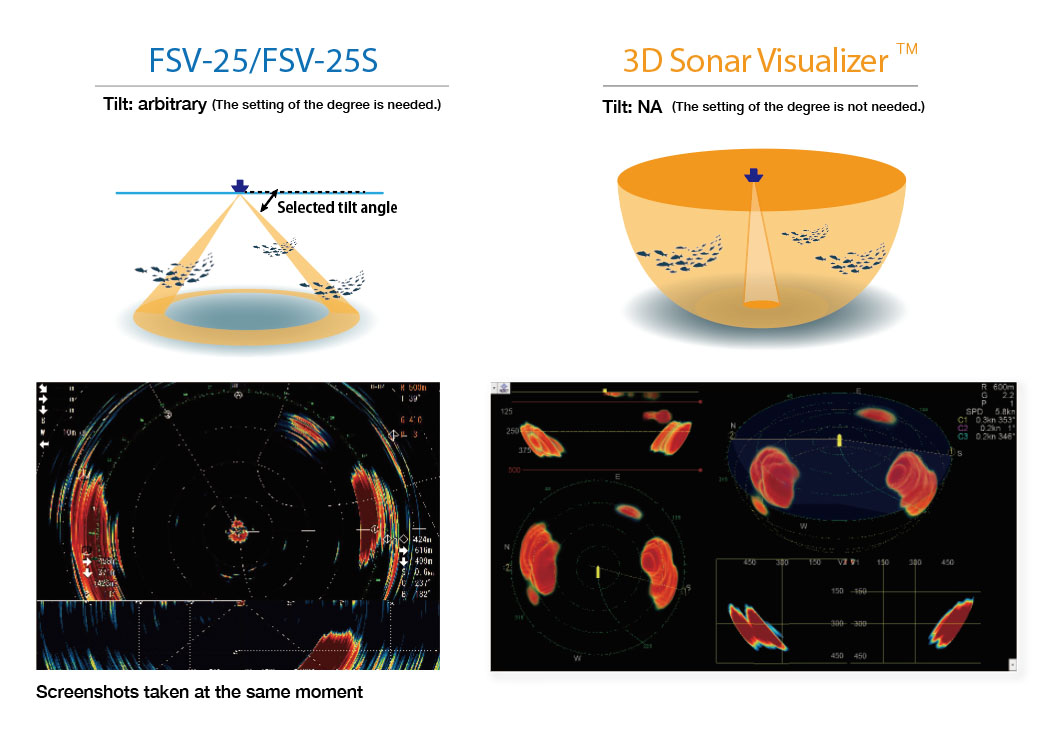

  • 3D Sonar Visualizer™ F3D-S (optional application)

    3D Sonar Visualizer™F3D-S is a new product that works in conjunction with the FSV-25/FSV-25S to show fish and sonar information in 3 dimensions. It uses the hull unit of your existing sonar but then processes the information in a unique way to show fish, peaks and sea floor data in a 3 dimensional "real world" view. Clearly see the size and shape of midwater marks to assess the best way to fish them and, with careful adjustment of the simple depth line control delete the seabed echoes to visualize fish schools close to the seabed.



    For more information, see 3D Sonar Visualizer™ F3D-S

Specifications

General

Scanning
Full digital beam forming
Frequency
20 kHz
Basic Range
FSV-25: 60 - 5000 m, 18 steps
FSV-25S: 60 - 10000 m, 23 steps
Audio Search
30°, 60°, 90°, 180°, 330° selectable

Display Unit

Pixel number
1280x1024 (SXGA), 1600x1200 (UXGA), 1920x1200 (WUXGA)
Colors
32 colors (sonar picture), 6 colors (marks)
Display mode
Head-up, North-up*, Course-up* and True motion*
* sensor required
Additional functions
3D sonar expression (with 3D Sonar Visualizer F3D-S) in the additional display

Transceiver Unit


PDM half-bridge

Straight amplifier, full digital beam forming
Beam width (horizontal)
TX: 360° x 7°, RX: 12° x 10° (-3 dB full width)
TX: 360° x 10°, RX: 16° x 14° (-6 dB full width)
Beam width (vertical)
TX: 360° x 29°, RX: 12° x 10°(-3 dB full width)
TX: 360° x 47°, RX: 18° x 13°(-6 dB full width)
Tilt
-5° to 60° (downward)
Maximum Depth
0° to 60° (downward)

Hull Unit

Raising/Lowering time
FSV-253: 12 s
FSV-254: 16 s
Transducer Travel
FSV-253: 1200 mm travel
FSV-254: 1600 mm travel

Interface

Ports
IEC61162-1/2: 3 ports (NMEA0183 Ver1.5/2.0/3.0)
CIF: 2 ports
Contact signal: 1 port (input, speed)
External KP: Input; 1 port, Output; 3 ports, TTL level
NMEA0183
Input: CUR, DBS, DBT, DPT, GGA, GLL, GNS, HDG, HDM, HDT, MDA, MTW, MWV, RMA, RMC, VBW*1, VDR, VHW, VTG, VWR, VWT, ZDA
Output: TLL
*1: Fore-aft and port-stud speeds required.
CIF data
System clock, Position, Bearing, First layer current data, Water depth, Water temperature, Sonde depth, Ship’s speed/course data, Multi-layer current data, Net depth, Wind speed/direction, Sonde number

Power Supply

Processor Unit
12-24 VDC: 10-5A includes I/F unit (48 VDC)
Power supply unit
100/110/115/220/230 VAC: 14 A max, 1 phase, 50/60 Hz Output for transceiver unit: 200 VAC, 1 phase, 50/60 Hz
Hull Unit
200-220 VAC: 16 A max, 3 phase, 50/60Hz
Rectifier
RU-1746B-2, 100/110/115/220/230VAC, 1 phase, 50/60Hz (Option)

Environment

Temperature
Processor unit: 0°C to +45°C
Hull unit: 0°C to +35°C
Others: 0°C to +50°C
Relative humidity
93% or less at +40°C
Waterproofing
Control Unit (Panel): IPX2, (Chassis): IPX0
Processor Unit, Interface Unit: IPX0
Transceiver Unit, Power Supply Unit, Junction Box: IPX2
Hull Unit: IPX2
Transducer: IPX8

Others

Weight
Control Unit: 3.8 kg
Processor Unit: 15 kg
Hull Unit (1200 mm): 1390 kg
Hull Unit (1600 mm): 1440 kg
Transceiver Unit: 138 kg
Interface Unit: 3.4 kg

Equipment List

Standard

  • Control Unit (Cable 5/10 m)1
  • Interface UnitFSV-8502
  • Processor UnitFSV-2503
  • Transceiver UnitFSV-251
  • Power Supply UnitFSV-252
  • Junction BoxFSV-2550
  • Hull UnitFSV-253/254
  • Installation Materials1
  • Spare Parts1

Option

  • Control UnitFSV-2501
  • Sub Control UnitFSV-853
  • Rectifier UnitRU-1746B-2
  • Remote ControllerFSV-2504
  • Installation MaterialsLAN cable 10/20/30/50/100 m
  • 3D Sonar Visualizer™ F3D-S (Application software)CD-ROM
    USB Protection Key (License Key)
