FR-8065

12" MARINE RADAR



6 kW peak output power, equipped with state of the art signal processing and UHD™ digital radar technology

The 12.1” color radar FR-8005 series features state of the art signal processing, whichmakes it easier to identify targets in heavy rain and poor visibility. The FR-8005 radar can discern between rain and surface reflections, providing the ability to find and track the movement of rain clouds as well as removing unnecessary echoes. For tracking the movement of other vessels at sea, “True Motion Trails” can be displayed as well as AIS/TT target-tracking with a zoom display function. When the vessel is in motion, the radar echoes move smoothly on the main display thanks to the “True View Mode”.

Recreational BoatsFishing VesselsWorkboats
Ultra High Definition Auto Tuning (Sensitivity) Traget Tracking AIS

Features

  • Advanced Signal Processing

    Even during rainfalls or severe weather conditions, radar echoes are clearly displayed, and unnecessary echoes can be removed instantly with ease. Compared with current radars (FR-8002 series) the technology for removing Sea, Rain and Snow clutter has been greatly enhanced utilizing FURUNO’s state of the art knowledge in digital signal processing.

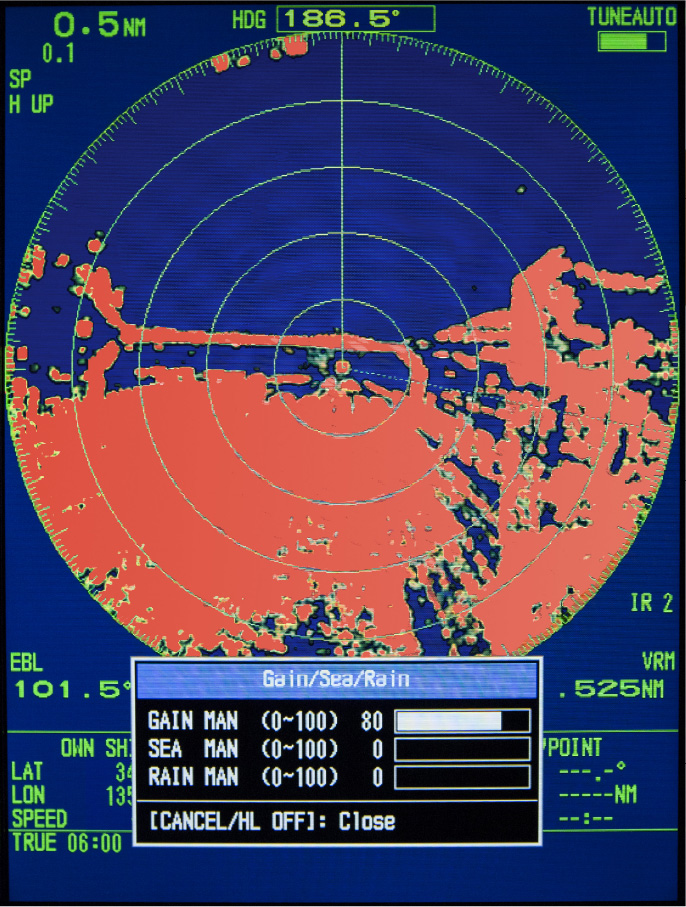

    A/C Rain OFF
    A/C Rain OFF

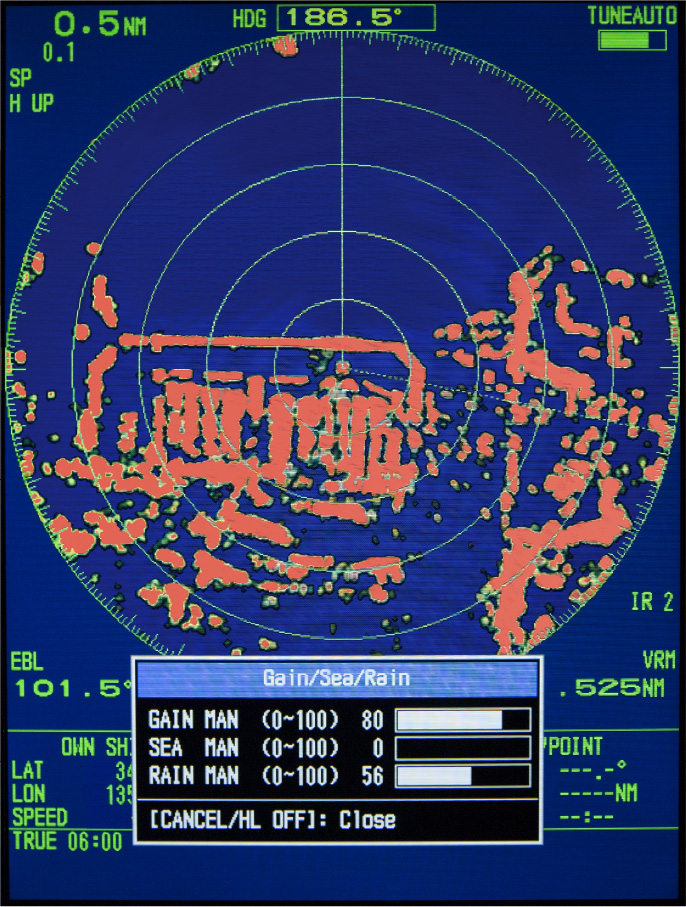

    A/C Rain ON
    A/C Rain ON
  • One-touch auto-adjust settings for Gain/Sea clutter/Rain clutter

  • See the movements of nearby vessels in the blink of an eye with True Trail Mode

    When using the True Trail Mode, moving objects will show up on the main screen with a colorful trail. These trails make it possible to determine the movements of nearby vessels.


    ※ Heading data and positional data are required
  • Wide viewing angle LCD for great visibility from any direction

  • Target tracking (TT) and AIS display

    The Target Tracking (TT) feature continously tracks and provides positional information for up to ten targets.
    ※ The optional ARP-11, heading data and speed data are required to use TT.

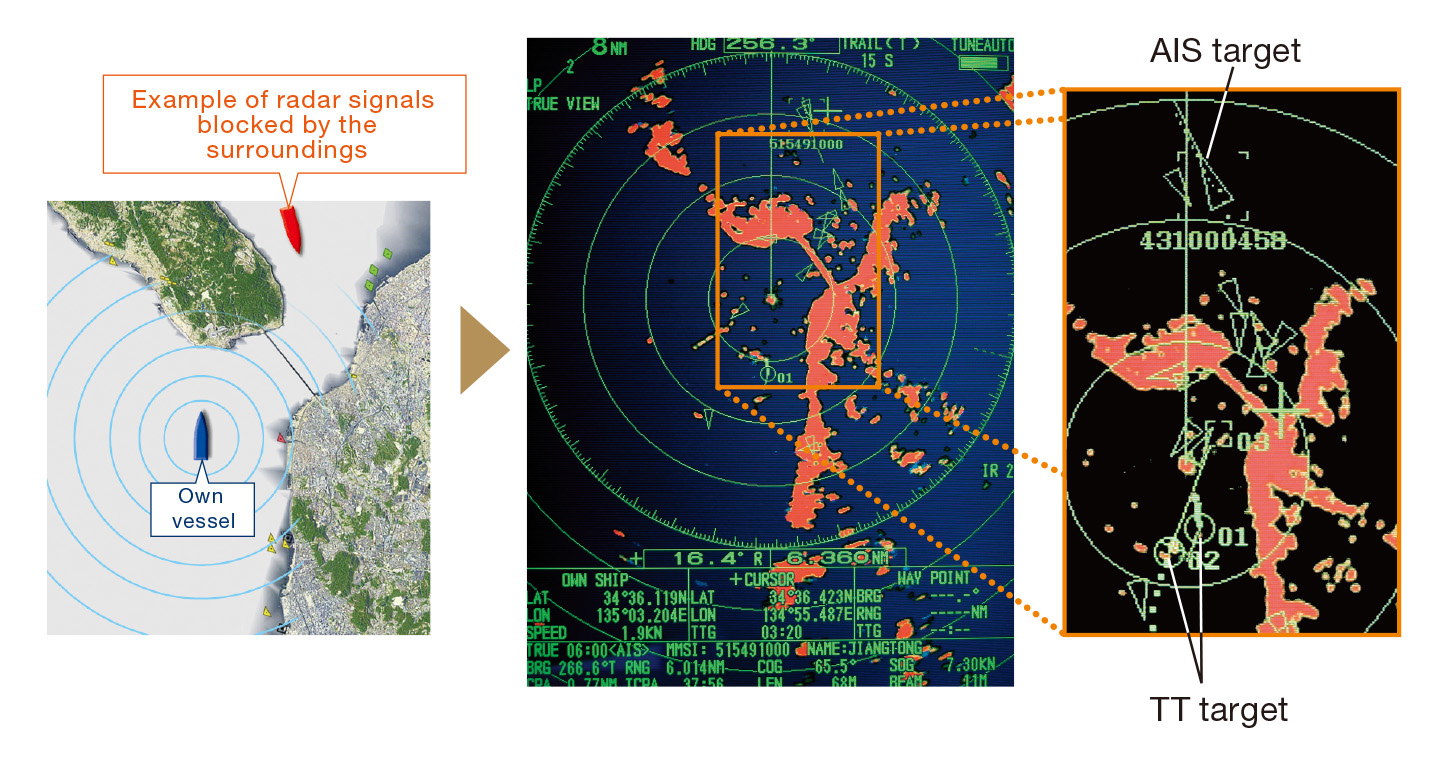

    An AIS device-equipped FR-8005 series radar can track target heading, name, speed and direction of movement. With AIS it is possible to identify and track the movement of other vessels in heavy fog, during nighttime and otherwise difficult conditions. Another benefit is that with AIS you can identify obscured targets that the radar signals cannot reach, giving you more time to act. AIS can display up to 100 targets simultaneously, TT can display up to 10 different targets simultaneously.
    ※ AIS receiver and heading data are required.
  • 48 rpm high-speed antenna rotation. Displays information clearly in narrow passages and on high-speed vessels

  • AIS/TT target-tracking with zoom display function

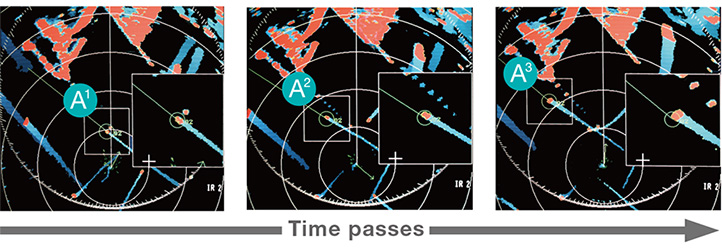

    When using the Target mode, vessels close by and vessels on intersecting courses are automatically displayed zoomed in. These targets will remain displayed for as long as they pose any concern. Target Trails are also displayed, making it easy for the user to determine the movements of individual vessels.


    ※AIS transponder and ARP-11 are required to use the zoom display function
  • Water depth display function available

  •

Specifications

ANTENNA

Peak Output Power
6 kW
Type
1255 mm Open (4') or 1795 mm Open (6')
Frequency
9410±30 MHz (X-band), P0N
Beam Width (Horizontal)
XN12A: 1.9°, XN13A: 1.35°
Beam Width (Vertical)
22°
Range Scales
0.0625 to 72 nm
Antenna Rotation Speed
24 rpm or 48 rpm*
*Specify the antenna length and rotation speed when ordering.
Weight
XN12A: 25 kg
XN13A: 27 kg

DISPLAY

Display Unit
12.1 inch color LCD, 800 (V) x 600 (H) pixels (SVGA)
Display Mode
Head-up mode, Course-up mode, True view mode*1, True motion*2
*1 Requires heading data *2 Requires heading and position data
Other Mode / Functions
ARP/AIS display*1, Target tracking*2, User programmable keys, Echo trails
*1 Requires AIS transponder/receiver installed
*2 Requires heading and speed data
Weight
5.8 kg

ENVIRONMENT

Temperature
Antenna Unit: -25 °C to +55 °C
Display Unit: -15 °C to +55 °C
Waterproofing
Antenna Unit: IP26
Display Unit: IP55 (front) IP22 (rear)

POWER SUPPLY

Power Supply / Consumption Current
24 VDC: 3.6 A (24 rpm), 3.9 A (48 rpm)

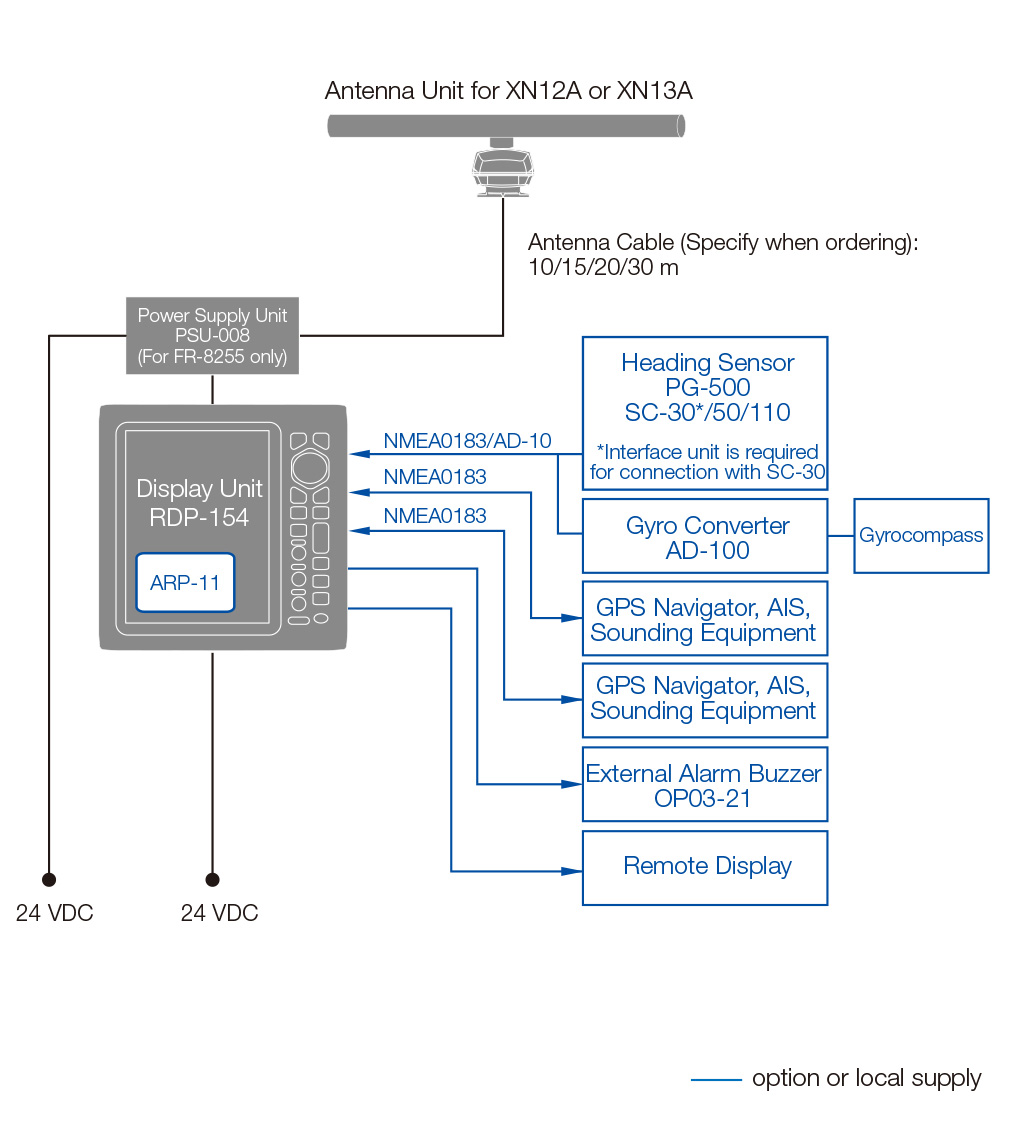

Interconnection Diagram

Equipment List

Standard

  • Display Unit1
  • Antenna Unit1
  • Installation Materials and Spare Parts1
  • Cable Assembly1

Option

  • Auto Plotter KitARP-11
  • External Alarm BuzzerOP03-21
  • Signal Cable AssemblyMJ-B24LPF0010-100+R
    MJ-B24LPF0010-200+R
    MJ-B24LPF0010-300+R
    MJ-A7SPF0007-050C
    MJ-A6SPF0007-100C
    MJ-A10SPFW0001+R
  • Flush Mount Kit
