Features
-
Multi-beam system presents images received from up to five beams simultaneously
-
Electronic beam stabilizer eliminates the loss of important targets due to ship's motion in rough seas (within up to 20 degrees)
-
Heaving compensation* provides unwavering echo images
* The GPS satellite compass works as a heaving sensor. -
Black Box system works with conventional SXGA/XGA PC monitors
-
7-degree sharp beam width gives a detailed echo image that is produced by high frequency beams
-
Straightforward operation by use of a trackball control unit
-
Frequency: 38 kHz; Output power: 4 kW
-
Automatic range shift for continuous bottom acquisition and tracking
-
Screenshots

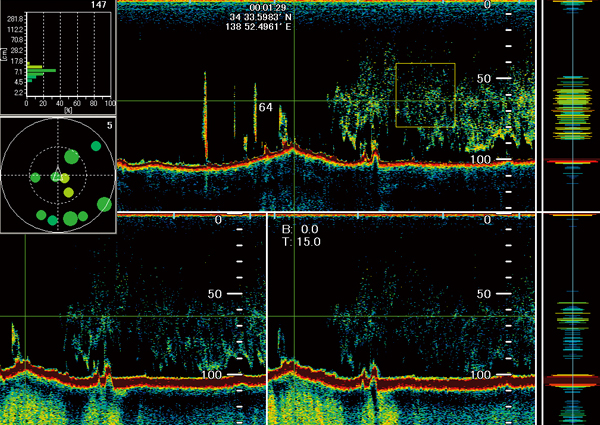

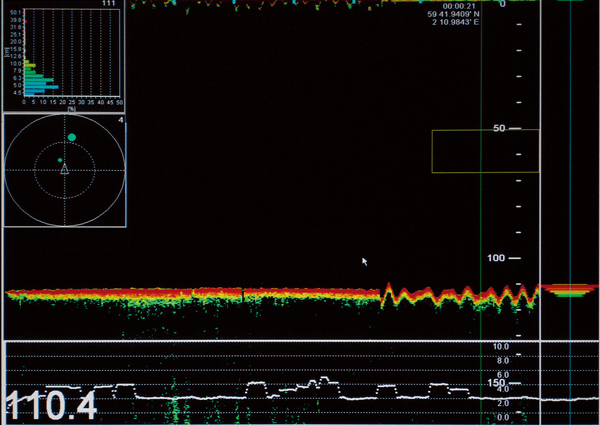

Multi split (Fish size assessment window/Fish distribution/A-scope)

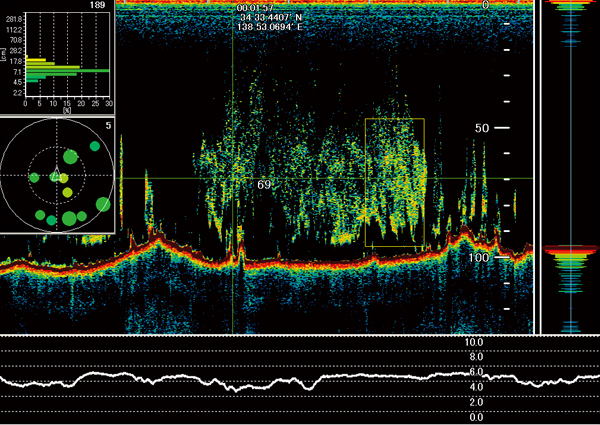

Multi split (with Fish size assessment window/Fish distribution window/Section for fish size assessment window)

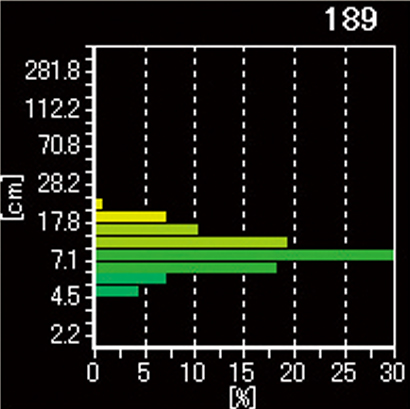

Fish size assessment

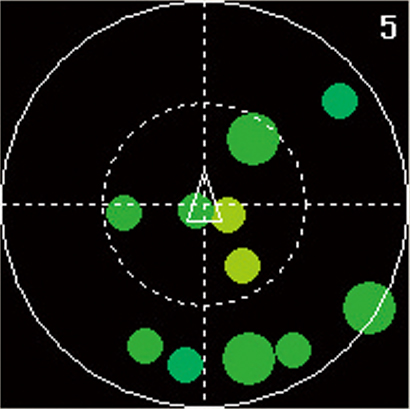

Fish distribution

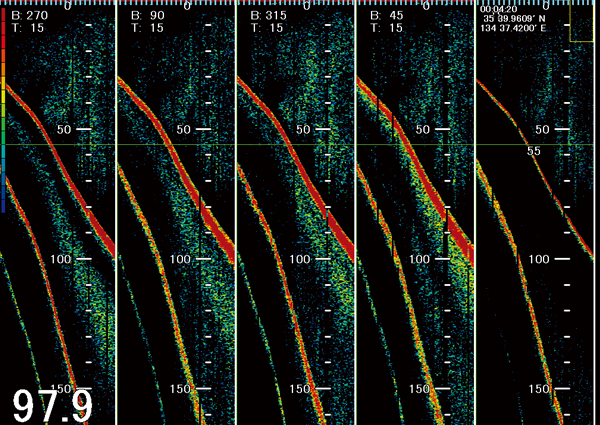

Vertical split (Three-beam presentation)

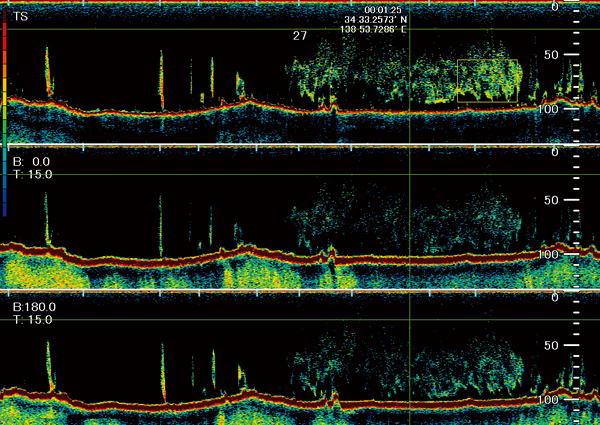

Horizontal split (Three-beam presentation)

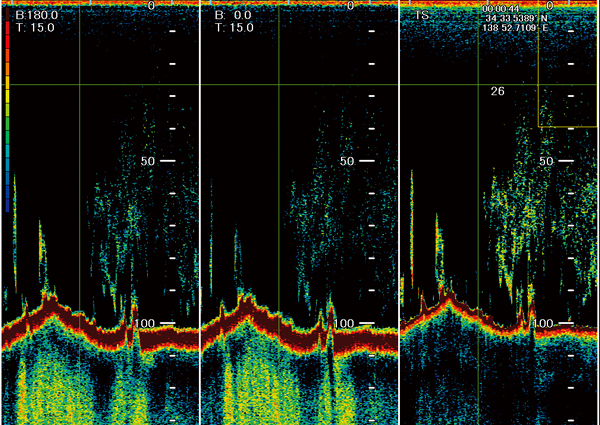

Vertical split (Five-beam presentation)
Heaving compensation with satellite compass (ON:left echo, OFF:right echo)
Specifications
FISH FINDER
- Frequency
- 38 kHz
- Transducer
- 4 kW
- Range Scale
- Range: 10-5,000 m
Shift: 0-5,000 m
Zoom range: 2-200 m - Display Mode
- Split-beam, 3-beam, Split-beam+2-beam, User1, User2, User3
OTHERS
- Waterproofing
- Control Unit: IP22 (front panel)
- Power Supply
- Processor Unit: 100-240 VAC, 3-2 A
Transceiver Unit: 100-120/200-240 VAC, 5-3 A - Weight
- Control Unit: 1.8 kg 4.0 lb
Transducer: 42 kg 92.6 lb
Transceiver Unit: 34 kg 75 lb
Processor Unit: 7.5 kg 16.5 lb

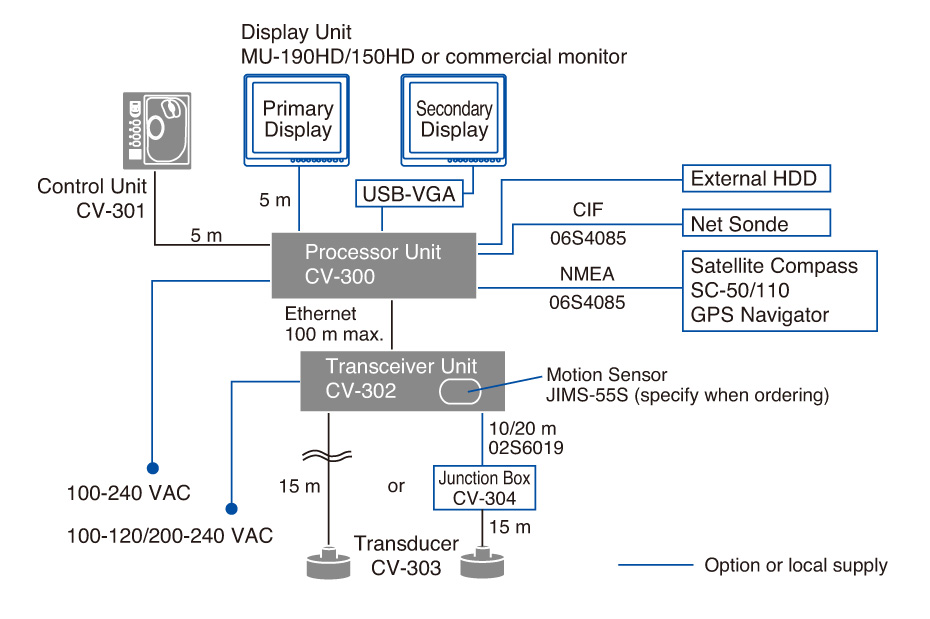

Interconnection Diagram
Equipment List
Standard
- PROCESSOR UNIT CV-300-E1 UNIT
- CONTROL UNIT CV-301 with 5 ｍ Cable1 UNIT
- TRANSCEIVER UNIT CV-302-E1 UNIT
- 38 KHZ TRANSDUCER CV-303 with 15 m Cable1 UNIT
- STANDARD INSTALLATION MATERIALS including 10m LAN Cable and THP TFB-16001 SET
- STANDARD SPARE PARTS1 SET
Option
- 15" LCD MU-150HD/19" LCD MU-190HD or commercial monitorDisplay Unit is not included in the standard supply.
- ARMORED LAN CABLE KIT10M/20M/30M
- TRANSDUCER CV-30315M
- JUNCTION BOX CV-304-1010M
- JUNCTION BOX CV-304-2020M
- FLUSH MOUNT KITCONTROL UNIT
- TRANSDUCER TANKT-625
- THRU-HULL PIPETFB-1600
