Features
-
Generate your own personal Multibeam Chart
The F3 series is set to revolutionise inshore fisheries with its Wideband CHIRP technology. Scanning a 120 degrees swath port to starboard and using 224 beams, the F3 series delivers each and every time. By using advanced signal processing, you get a complete picture of seafloor bathymetry with ease.

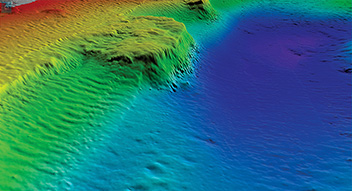

WASSP 3D
- Capability to save chart into the CDX software
- TIMEZERO compatible with optional licence
-

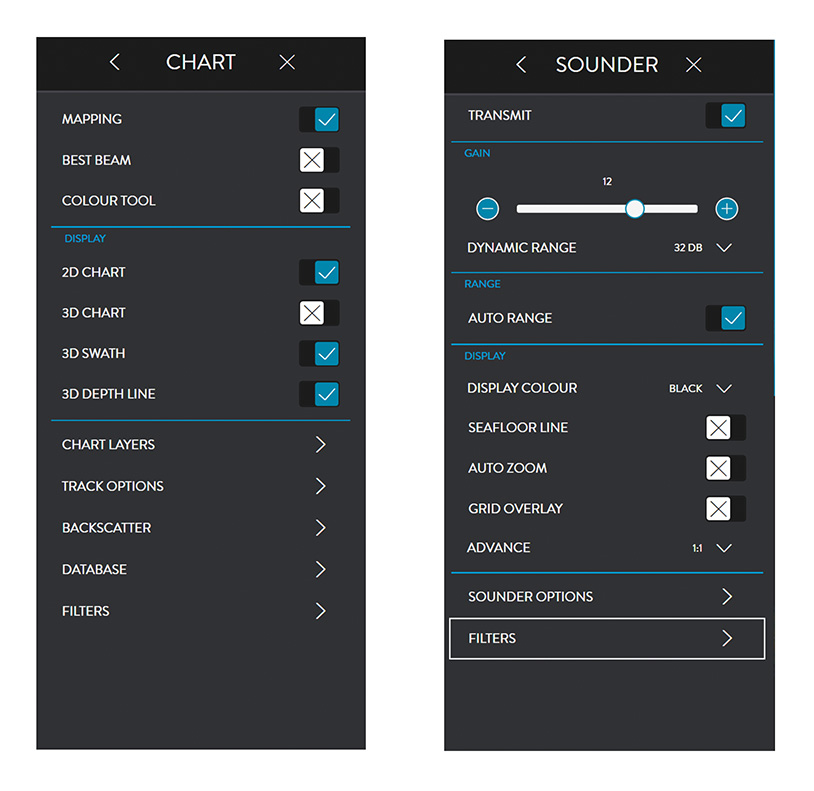

New easy-to-use interface
The F3 series inctoduce a new simplified software “WASSP CDX” for control, visualisation and data management while still providing a comprehensive set of functions to meet the most demanding fishing requirements.
- Cost-effective solution for multiple applications
- Choose your own functions with new licensing options
-
Various presentations
Fish Density Overlay

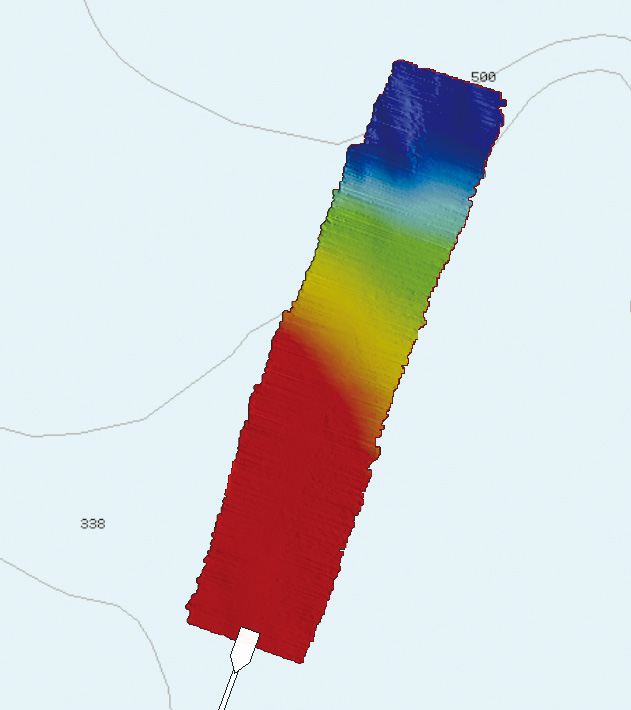

2D Mapping to 500 m
Sounder (60 kHz)

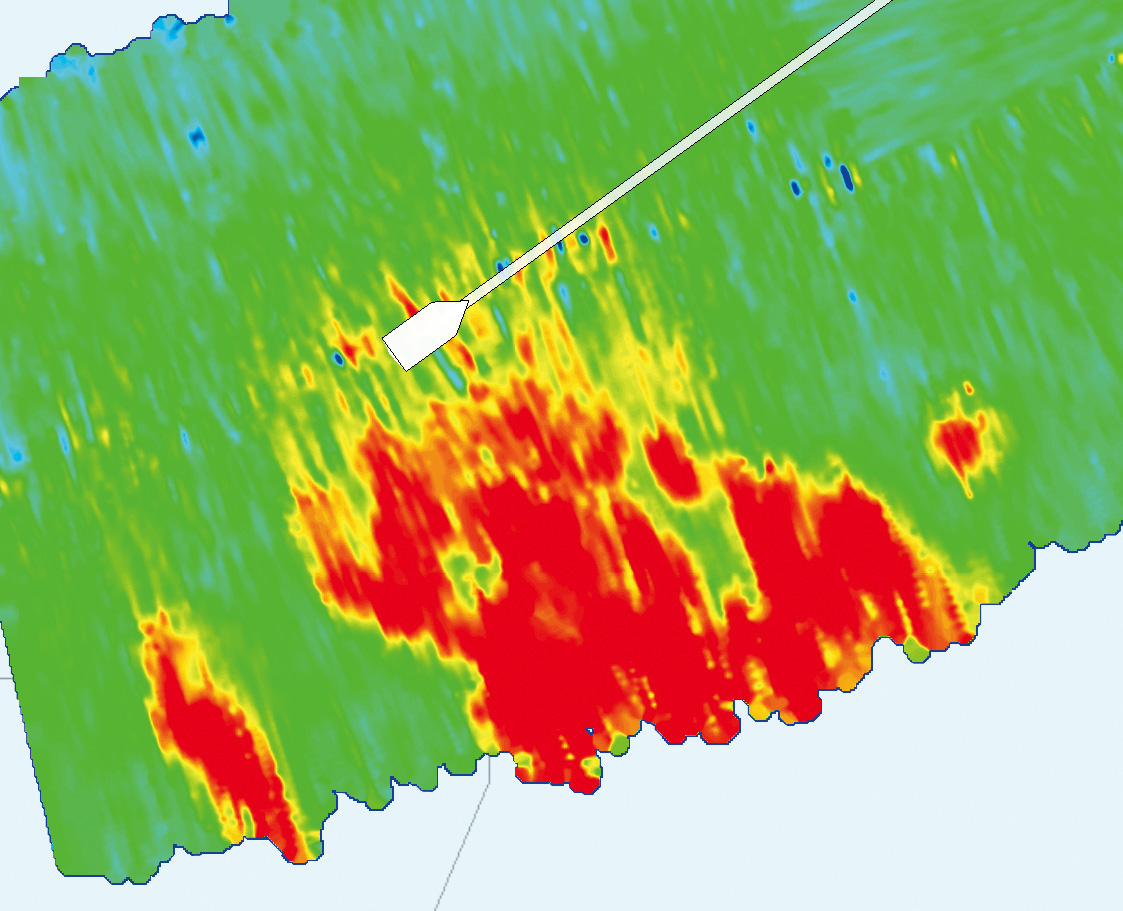

Backscatter (Bottom Hardness) at 200 m
-
All-in-one DRX transceiver, incredibly versatile and ready for the next technology advances
This innovative all-in-one “BlackBox” is not just a robust hardware platform but also introduces cutting-edge technical innovations and incredible versatility for finding your catch. This opens countless new possibilities for your operations.
-
WASSP transducer
The WASSP sonar transducer is available in 2 frequencies.
- 136-184 kHz Wideband (160 kHz center)
- 68-92 kHz Wideband (80 kHz center)
Specifications
General
- TX Frequency
- Wide band
F3/F3i: 160 kHz
F3L/F3Li: 80 kHz - Detection Range
- F3: 200 m* (Side Beam Best Performance)
400 m* (Main Beam Directly Under Boat)
F3L: 450 m* (Side Beam Best Performance)
900 m* (Main Beam Directly Under Boat)
*Depth capability subject to a variety of external factors. - Beam Width
- 120° x 4° (Athwartships x Fore-aft)
PS: 4.4°
Interface
- NMEA0183
- GGA, GGK, GLL, HDG, HDM, HDT, HVE, PASHR, PTNL PFEC, RMC, RCD, TSS1, ZDA
Display
- Display Mode
- Bathymetry, Sonar polar view, Sounder (single, triple & quint beam)
(Licensing options)
Backscatter, Open Client Support, Water Column Targets, Uncorrected Data, XYZ export, Sidescan, RTK tides,
other export formats*
* available in 2017
Minimum PC Specs
- OS
- Windows 8.1, 10
- CPU
- 2 Ghz, 4 Cores/4 Threads
- Memory
- 8 GB (Min. 4 GB)
- Screen Resolution
- Full HD 1920 x 1080 (Min. XGA 1024 x 768)
Environment
- Temperature
- 0°C to +50°C (storage:-20°C to +85°C)
- Relative humidity
- IEC60945, 93 % or less at +40°C
- Waterproofing
- IP53, Bulkhead mounted (IP67 option available)
- Vibration
- IEC60945 Ed.4
Power Supply
- Transceiver Unit
- 9 to 32 VDC
Others
- Size
- Transceiver Unit: 216(W) x 260 (D) x 205 (H) mm
Transducer:
WMB-160 (160 kHz) ; 98 (H) x 330 (W) x 168 (D) mm
WMB-80 (80 kHz); 133 (H) x 533 (W) x 340 (D) mm - Weight
- Transceiver Unit: 8.3 kg
Transducer:
WMB-160 (160 kHz) ; 15 kg
WMB-80 (80 kHz); 39 kg
Interconnection Diagram
Equipment List
Standard
- Transceiver unitDRX (F3 DRX/WSP-603-200)
- WASSP CDX(PC application)
- Transducer unit F3 or F3LF3 (G3 Transducer: 160 kHz) with 10 m cable
or
F3L (G3 Transducer: 80 kHz) with 20 m cable - WASSP sensor package**For F3i (WMB-1320Fi)/F3Li (WMB-1320FLi)
Option
- F3 (G3 TRANSDUCER: 160 kHz) with 20 m cable
- Gland(aluminum/plastic/steel)
- Satellite Compass plus cable with WASSP sensor box**For F3 (WMB-1320F)/F3L (WMB-1320FL).
- WASSP sensor box
