Electronic Chart Display and Information System ECDIS EC-8100, EC-8600 with Track Control System

  • ECDIS works with Autopilot to build a Track Control System(TCS).
  • Complies with latest IMO standards. MSC.232(82)
  • STAND ALONE and UNIT type are available.
  • In addition to the current Track Control System(TCS), Type approval for interface with new adaptive control (NCT) autopilot (HCS) is available.
    IMO/ MSC 74 Annex2 IEC62065 Category C.

Features



  • New 26 inch wide screen LCD display(EC-8600/EC-8600K)
    WUXGA 1920x1200 wide screen pixel support
  • AIO display support
    T&P Notice to Mariners (T&PNMs:Temporary related notices) and AIO
    (Admirality Information Overlay) can be displayed as supplimental information on the ENC chart
  • INS conformity AMS response
    Centralized management of all alerts from each Navigation Equipment(Alert Management System)
  • Fast installation of ENC charts (Install time reducted to 1/3)
  • Possible to connect to VDR
  • Easy software upgrade onboard by ship's crew



Function

  • Chart display, Ship position fixing, Target positioning measurement, Route planning, Route monitoring, 24 hours/3 months navigation record and play back, Navigation memo and No-go line/No-go area, Tracked target information display, AIS target information display, System self-diagnosis

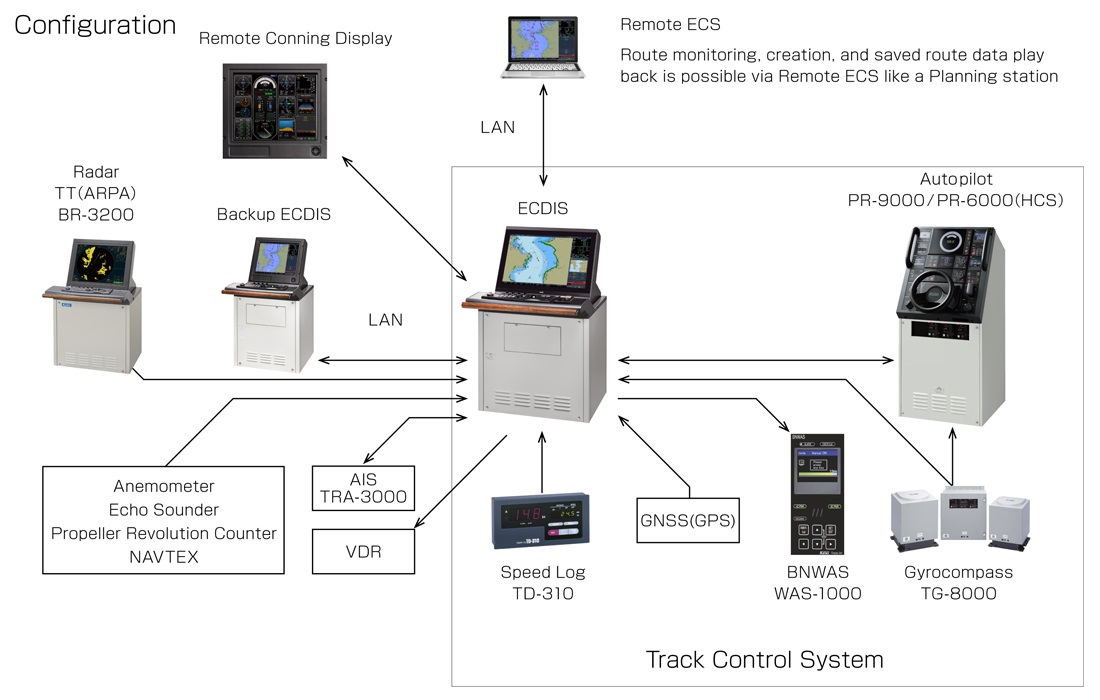

TCS Configration
