NX-700B

NAVTEX RECEIVER (LCD only)



Enhances the navigation efficiency and safety by watching NAVTEX messages broadcasted on both international and local channels

The NX-700 can receive the international NAVTEX messages as well as domestic or local NAVTEX messages at the same time.

Merchant MarineWorkboats
GMDSS

Features

  • Fully meets new IMO resolution MSC.148 (77) to be implemented on and after 1 July 2005 requiring

  • Dual channel reception, 518 kHz and either 490 or 4209.5 kHz, simultaneously

  • Incorporates a printing device (NX-700A) or a dedicated display device with printer output (NX-700B)

  • 200 message of average length 500 characters can be stored in nonvolatile memory

  • Incorporates a preamp within a lightweight, compact antenna for reliable, uninterrupted reception

  • Display messages on a clear 5" silver bright LCD

  • Low power consumption

  • NAV data display acts as NMEA repeater for GPS or instrument

  • Screenshots


  • MESSAGE INBOX

  • MESSAGE DISPLAY

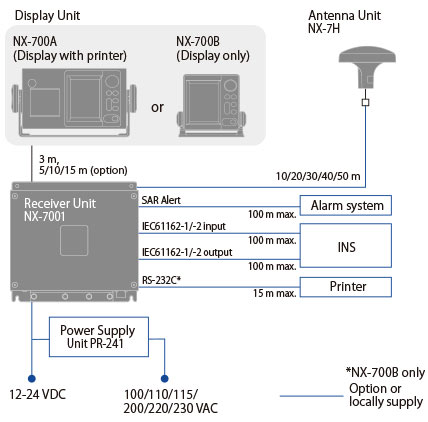

Interconnection Diagram

Equipment List

Standard

  • DISPLAY UNITNX-700B
  • RECEIVER UNITNX-7001
  • ANTENNA UNITNX-7H
  • STANDARD INSTALLATION MATERIALS
  • STANDARD ACCESSORIES
  • STANDARD SPARE PARTS

Option

  • MAST MOUNTING KITCP20-01111
  • CABLE ASSEMBLYDSUB25P-DSUB25P-3M / DSUB25P-DSUB25P-5M / DSUB25P-DSUB25P-10M / DSUB25P-DSUB25P-15M
  • L-ANGLE MOUNTING BASENO. 13-QA310
  • RIGHT ANGLE MOUNTING BASENO. 13-QA330 (300)
  • HANDRAIL MOUNTING BASENO. 13-RC5160
  • ANTENNA CABLE EXTENSION KIT (10/20/30/40/50 M)OP04-2 10/20/30/40/50 M
  • FLUSH MOUNT KITOP08-19
  • AC/DC POWER SUPPLY UNIT (110/220 VAC -> 24 VDC)PR-240
  • ARMOURED COAXIAL CABLE (30/40/50 M)RG-10/U-Y 30/40/50 M
